Miyakoshi LED-UV Inkjet Label Press – Miyakoshi MJP13LXV

INKJET LED UV

for printing labels

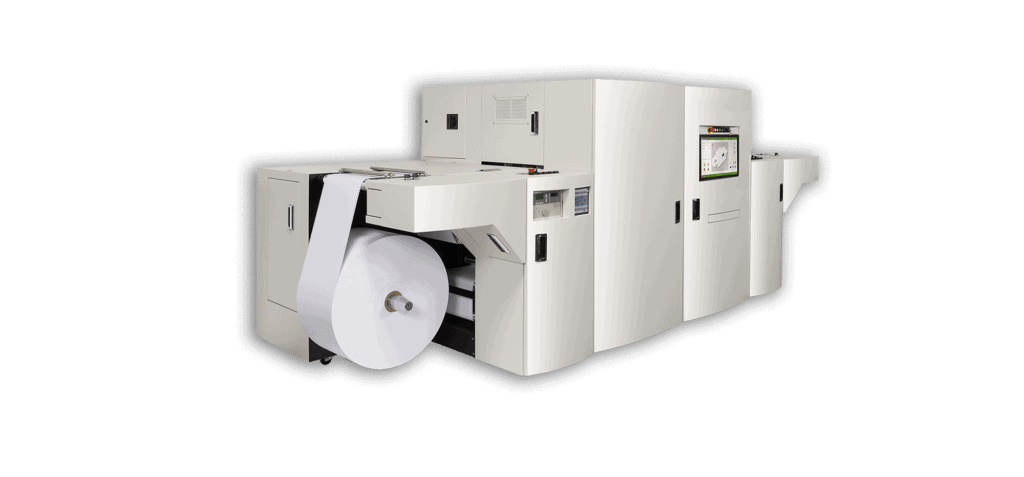

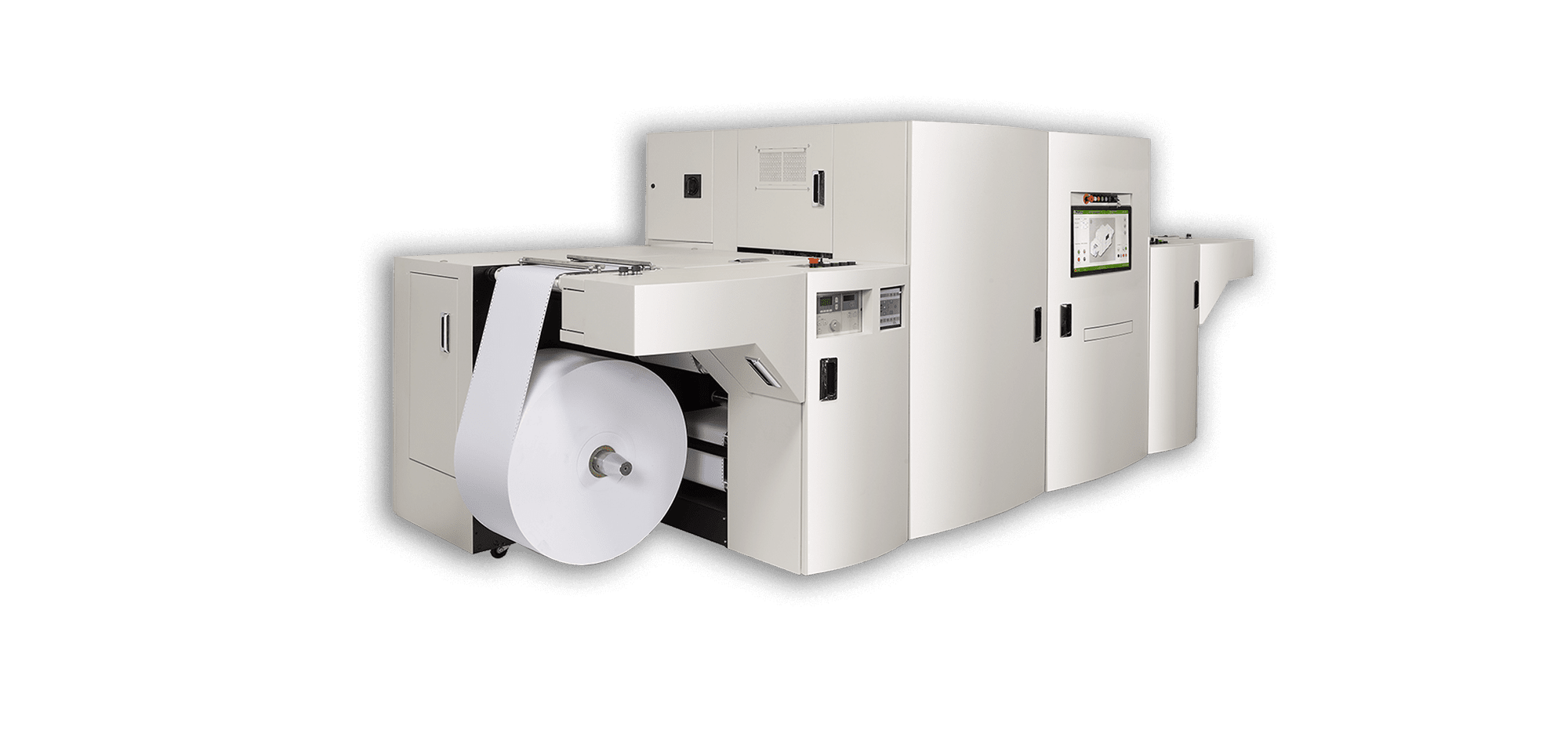

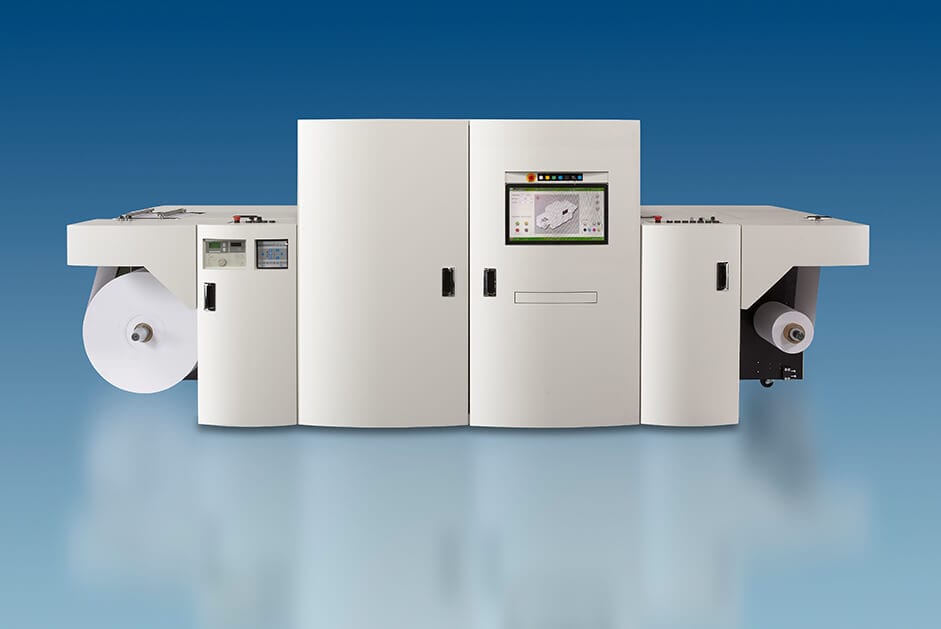

The MJP13LXV is Miyakoshi's LED-UV digital inkjet bet for the label market, specially designed to meet the growing demand for short runs of excellent quality, while reducing start-up times and wastage.

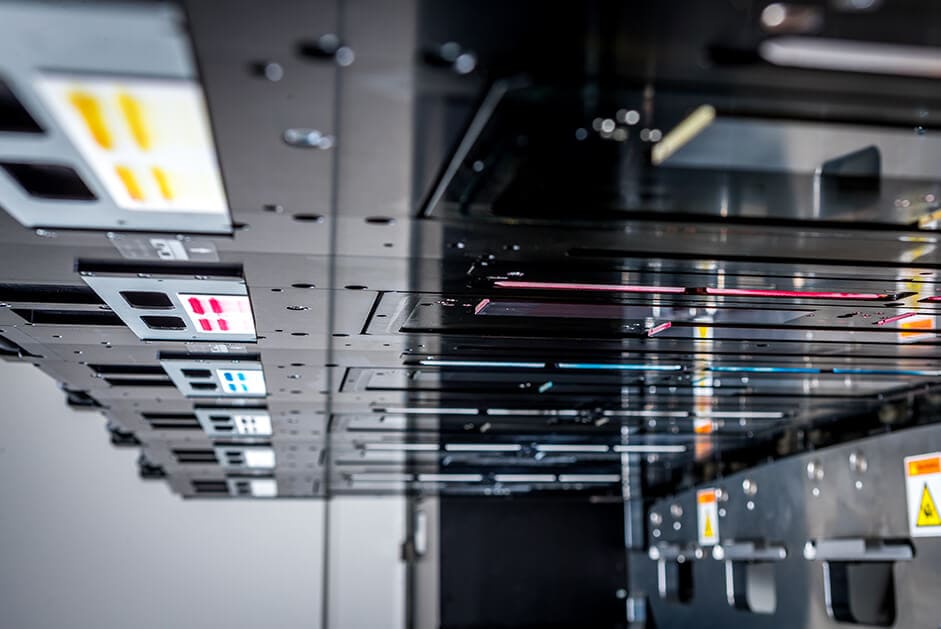

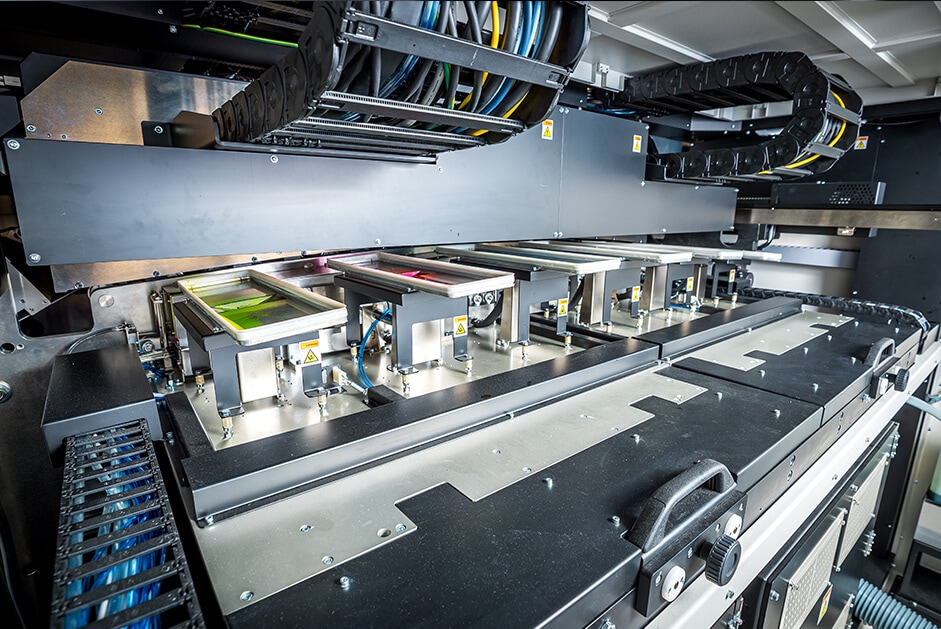

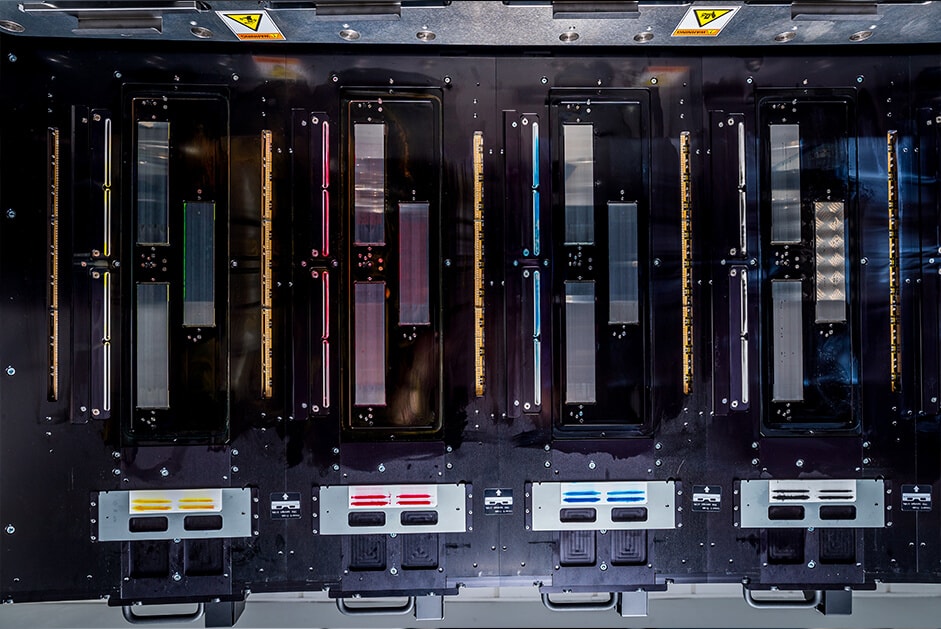

Its high resolution of 1200 x 1200 dpi allows to achieve an outstanding printing quality. It counts with three print heads per colour and three types of prining modes, allowing the managing and reducing of ink consumption.

With a print speed of 50m/min, it becomes a great option for the current flexography industry, which allows, among other features, rapid changeovers, agility and simplicity.

The press comes equipped with dryers after each colour (pinning system) and final LED curingassuring optimum results.

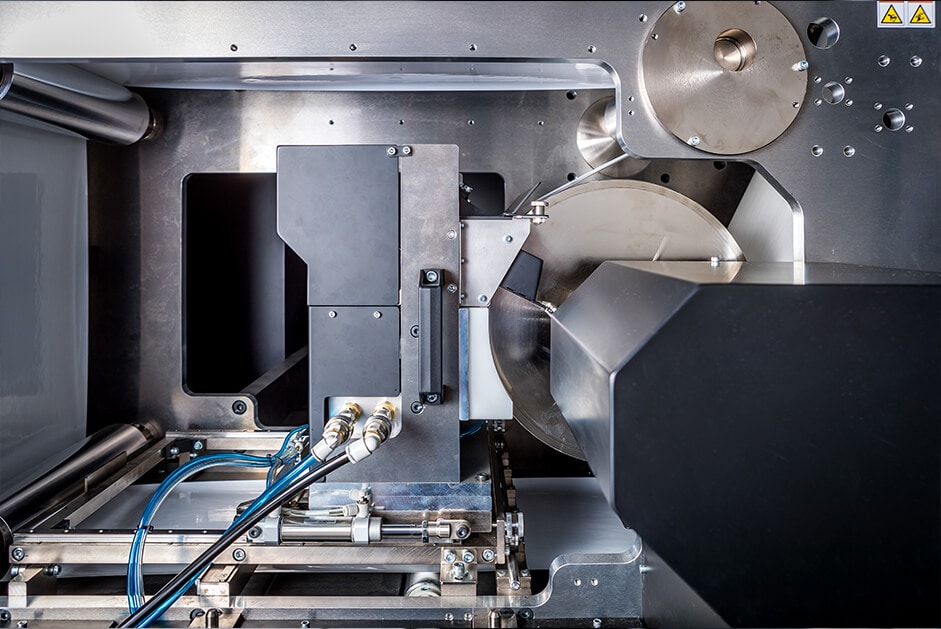

Sophisticated Nitrogen Purging System to reduce the characteristic odour of UV inks and to improve the drying process.

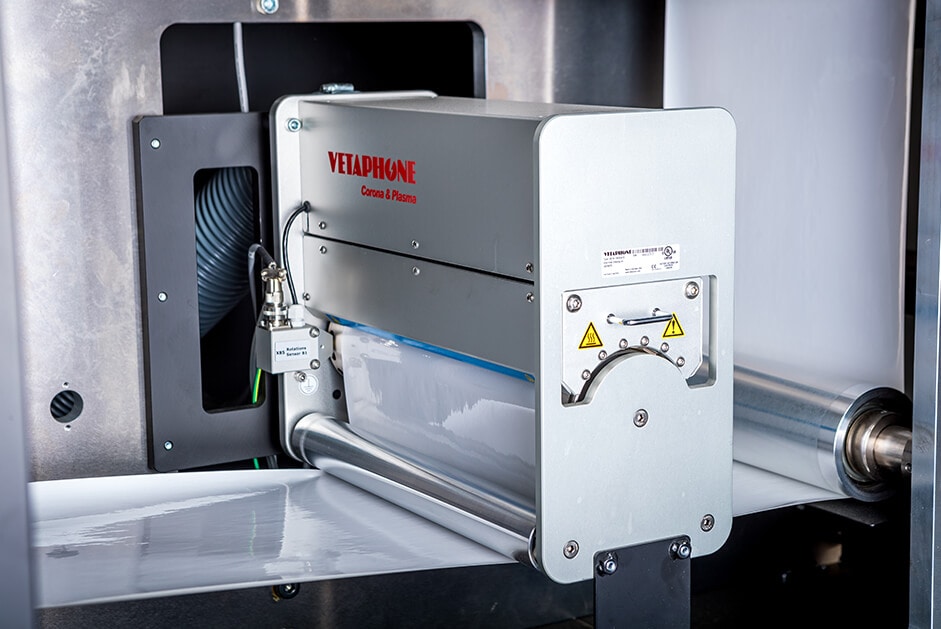

Corona treatment to facilitate the impression on plastic substrates, such as PP, PE, etc.

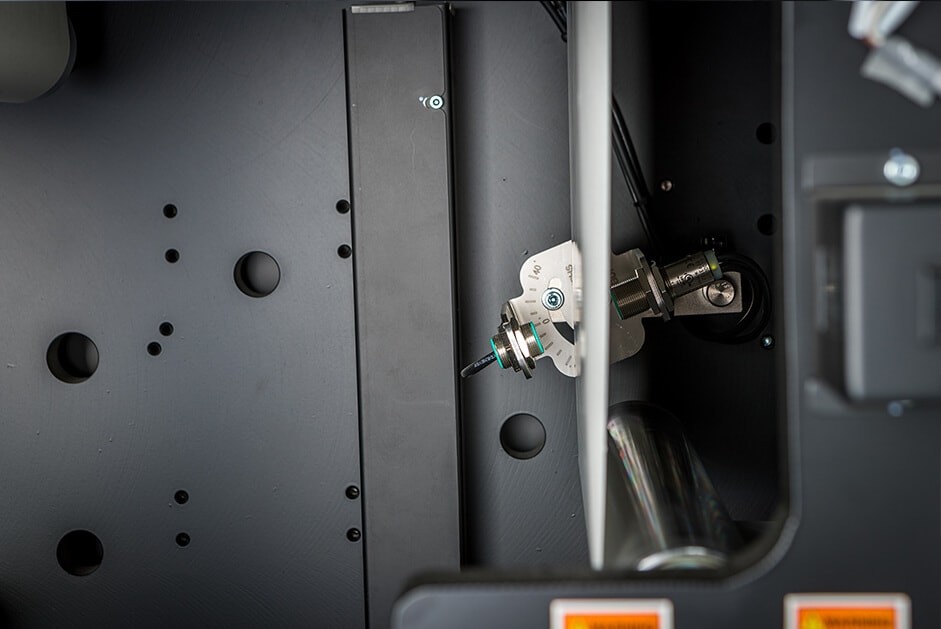

Splice detection system

The sensor detects the splice and automatically raises the print head to avoid any damage.

Automatic print head cleaning system

3 differents cleaning options to maintain the press in the best conditions.

Technical data



FEATURES INKJET MJP13LXV
Resolution 1200 x 1200 dpi
Printing Method Single pass and piezoelectric drop on demand
Max. Paper Width 342.9 mm (13.5”)
Max. Printing Width 318 mm
Print Repeat Length 101.6 mm – 1625.6 mm
Max Speed ** (***) 50 m/min
Paper Thickness 60 micron – 250 micron
**The printing speed is conditioned to the format, weight, substrate conditions, the generals of printing and optionals equipments.*** The printing speed of the quotations and the agreement are mechanical speed.
