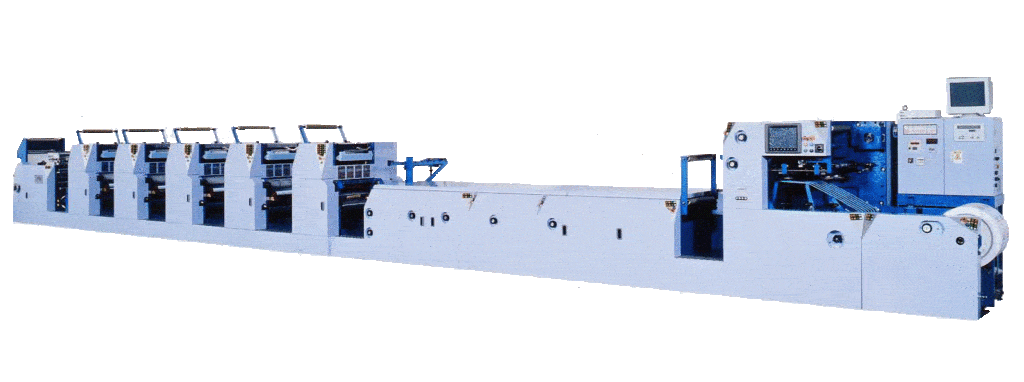

Miyakoshi Variable Format Web Offset Press – Miyakoshi MVF

More than 200 machines sold on the European market

One of the only suppliers of rotary presses for the printing of pharmaceutical documents.

Pharmaceutical documents, lottery tickets, security-related documents, direct mails…

Broad field of action: continuous form, labels and packaging

Robust construction assuring great stability on high-speed running

A micro-computer-employed web pitch controller “MS-800” assures great stability in web-feeding pitch and web-tension

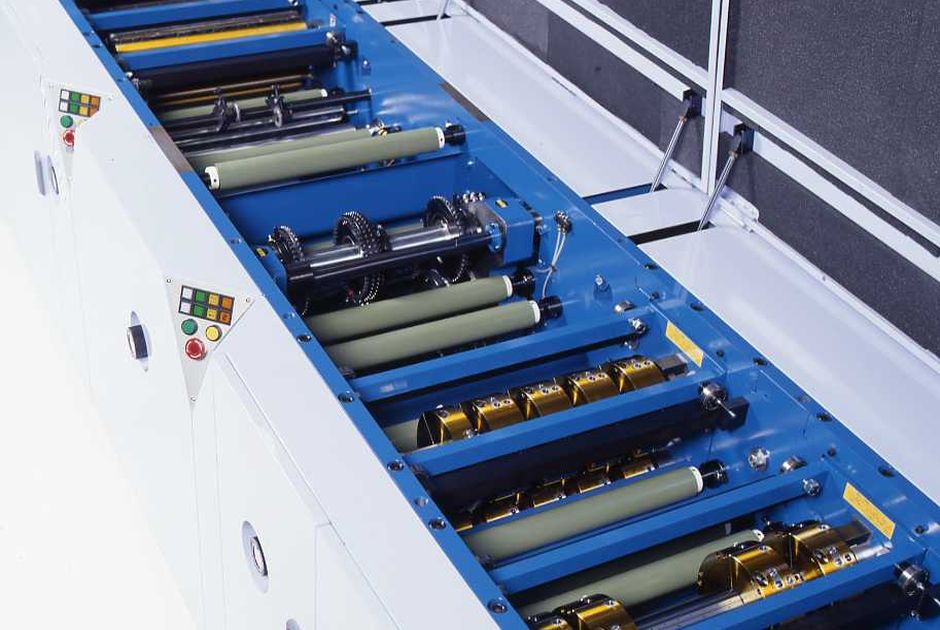

Wide-ranging capacity of converting processes, including hole-punching, perforating, sheeting and die-cutting

Easy to change printing methods between offset to flexo or letterpress, simply by changing cassettes

Miyakoshi’s best-selling machine with proud record of over 1,000 installations worldwide

Data sheet Variable Format Web Offset Press – Miyakoshi MVF



ModeloMVF18MVF20MVF22MVF26
Tipo de máquinaBDEGLDAHGAKG
Max. Ancho de banda18.5”20.5”22.5”26.5”
Ancho máximo de impresión18.0”20.0”22.0”26.0”
Rango de casette10” ~ 18”13” ~ 24”17” ~ 30”17” ~ 36”13” ~ 24”14” ~ 28”14” ~ 28”17” ~ 36”

Rango de perforación transversal

12” ~ 24”17” ~ 30”17” ~ 36”12” ~ 24”14” ~ 28”14” ~ 30”
Rango de plegado en zig-zag7” ~ 18”7” ~ 18”7” ~ 18”7” ~ 18”
Max. Diámetro de bobina50”(1,270 mm)50”(1,270 mm)50”(1,270 mm)50”(1,270 mm)
Max. velocidad de bobina a plegado250 m/min250 m/min360 m/min300 m/min400 m/min300 m/min250 m/min
Max. velocidad bobina a bobina250 m/min250 m/min360 m/min350 mmin450 m/min350 m/min250 m/min
Gramaje de papel35 ~ 157 g/m235 ~ 157 g/m235 ~ 157 g/m235 ~ 157 g/m2
