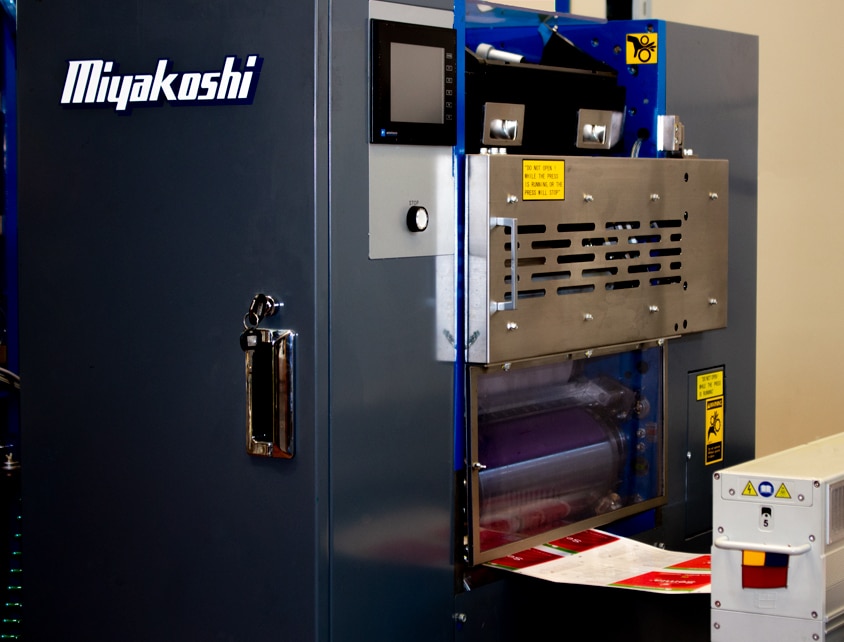

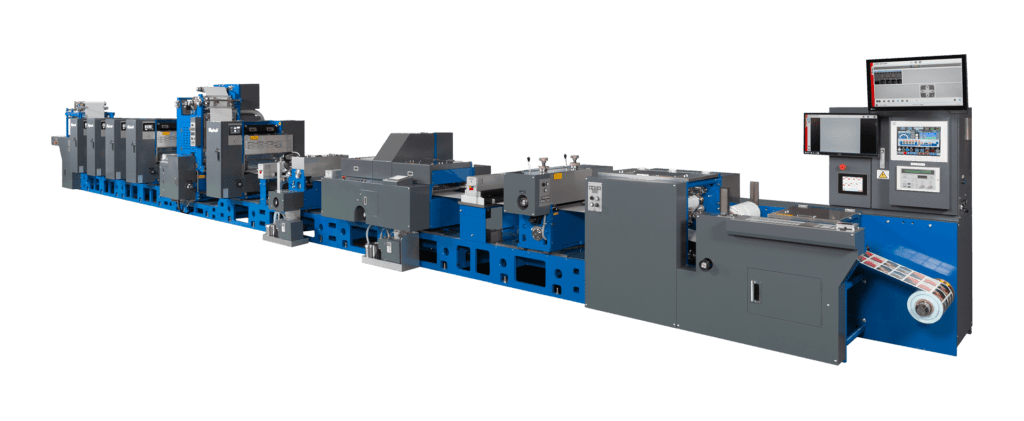

Miyakoshi Semi-rotary offset UV label press – Miyakoshi MEL

Semi-rotary offset technology at your service

The Miyakoshi MEL is a semi-rotary offset press for labels, specially designed to ensure productivity and optimum quality of short and medium runs, increasingly demanded by the market.

It gives added value to the labels. Thanks to its semi-rotary design and because it is equipped with an electric heater, makeready is very fast. Film saving mode is available as an option.

It is an optimal solution for the printer to run short, medium and long jobs due to the low cost of the screen. The screen moves back and forth while the squeegee remains stationary.

The electronic remote control system of the inkwells facilitates faster and more precise colour adjustment.

Solid and robust construction.

Technical data

Max. Paper Width 350.0 mm (13.5”)
Max. Printing Width 330.2 mm
Repeat Length 165.1 mm – 330.2 mm

Max. Machine Speed 150 impressions/min
(49.5 m -long. rep.- 330.2 mm)
Substrate Gram.

50 gsm – 300 gsm

Substrate Thickness

70 micron- 300 micron

**The printing speed is conditioned to the format, weight, substrate conditions, the generals of printing and optionals equipments.*** The printing speed of the quotations and the agreement are mechanical speed.
