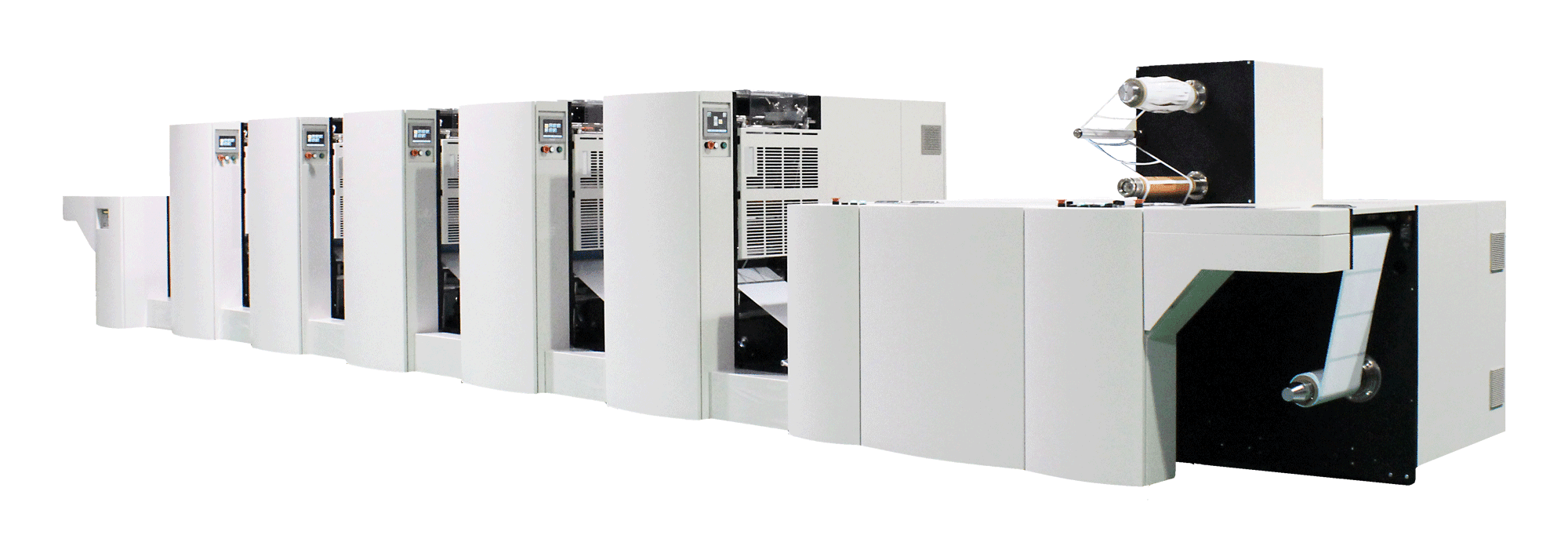

Miyakoshi LED-UV web-fed sleeve offset press – MIYAKOSHI MHL

Full-rotary offset LED-UV sleeve press for Flexible packagings
Suitable for short-run to middle-run jobs & high quality flexible packaging printing on films.

Specifically designed to address the rapidly growing demand of high-quality flexible packaging jobs. Offers short makereadies as well.

Strong, solid and reliable press construction

Quality-proven offset printing technology enables flexible packaing printers to achieve the best printing quality

Wide substrate capability to cover unsupported films and thin label stocks

Maximum printing speed of 180m/min. (option) with  repeat length up to 609.6mm enable to produce short-run to middle-run productions

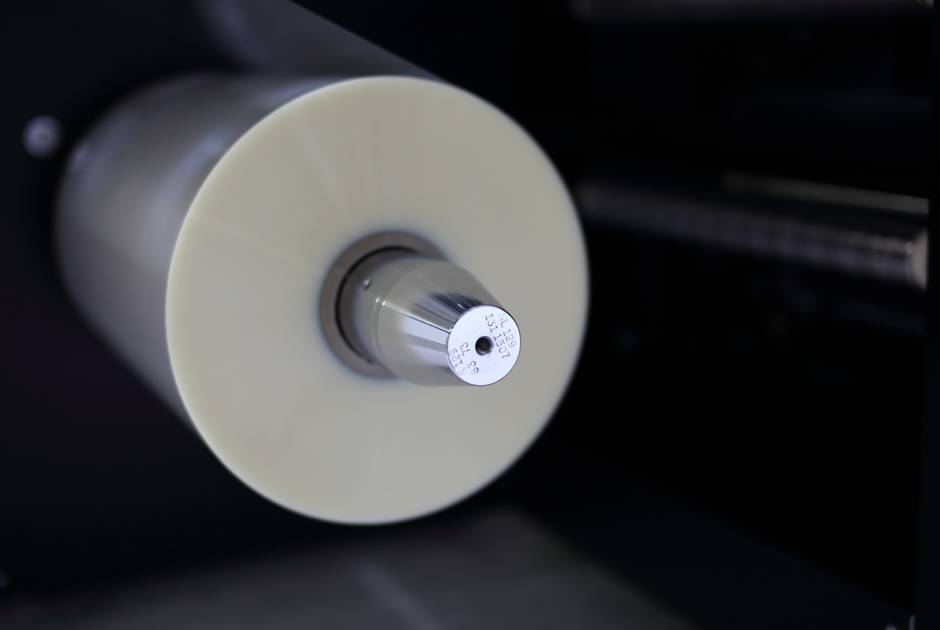

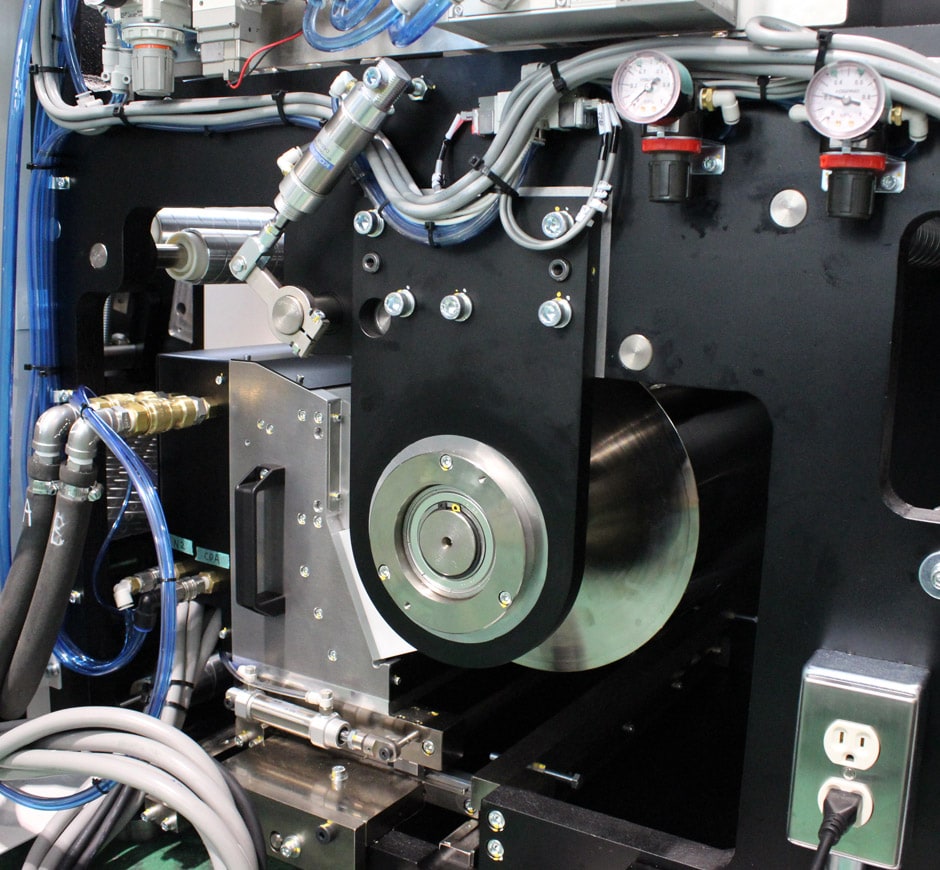

Sleeve system for Blanket and Impression cylinder gives dramatic reduction of job changeover times.

El sistema sleeve para cauchos y cilindros de impresión, reduce  los costes de tiempo en  cambio de planchas al máximo.

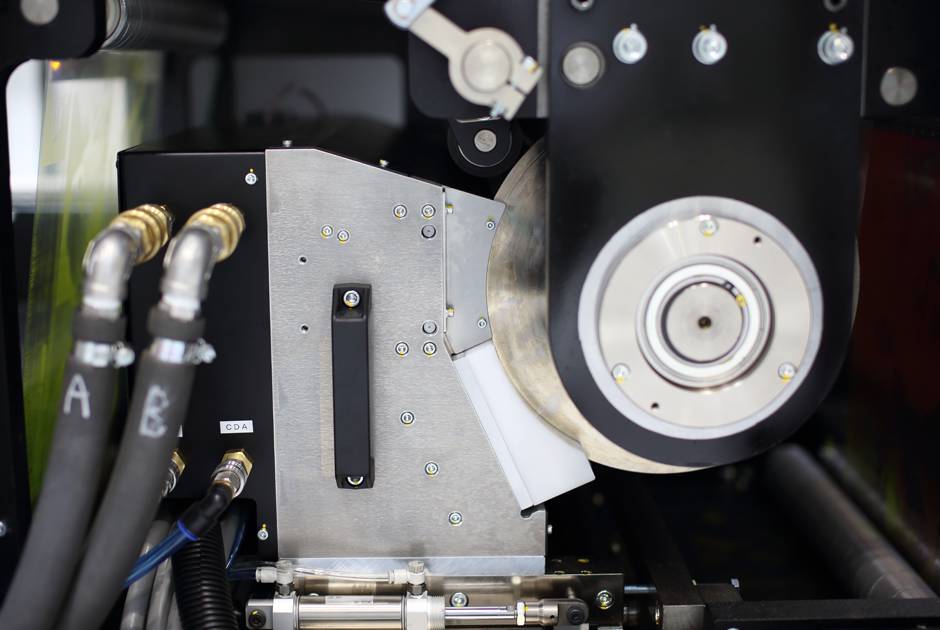

Combining a Nitrogen-purging LED-UV drying system that drastically promotes ink curing with low-odor type offset LED-UV inks to minimize the no. of dryer and the cause of ink odor, photo-initiators, contained in the ink.

Technical data

Machine Type MHL18A MHL22A


Printing Method Sleeve type wet offset

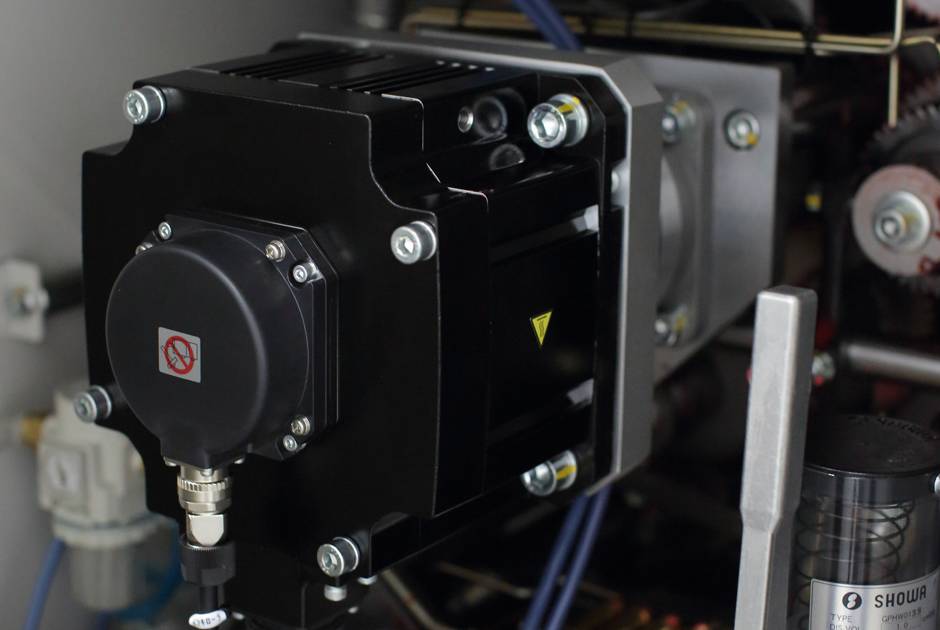

Drive method Sectional drive (independent motor per unit)
Max. Printing Speed **(***) 100m/min (Option:180m/min)
Used Ink LED-UV offset ink/ LED-UV for Nitrogen Purge INK
Max. Printing Width 457mm 558mm 660mm
Max. Media Width 470mm 570mm 670mm
Repeat Length 15”~24” 15”~24” 15”~24”
Paper Thickness 15μm~ 300μm
Max. Roll Dia. 600mm 600mm 600mm
