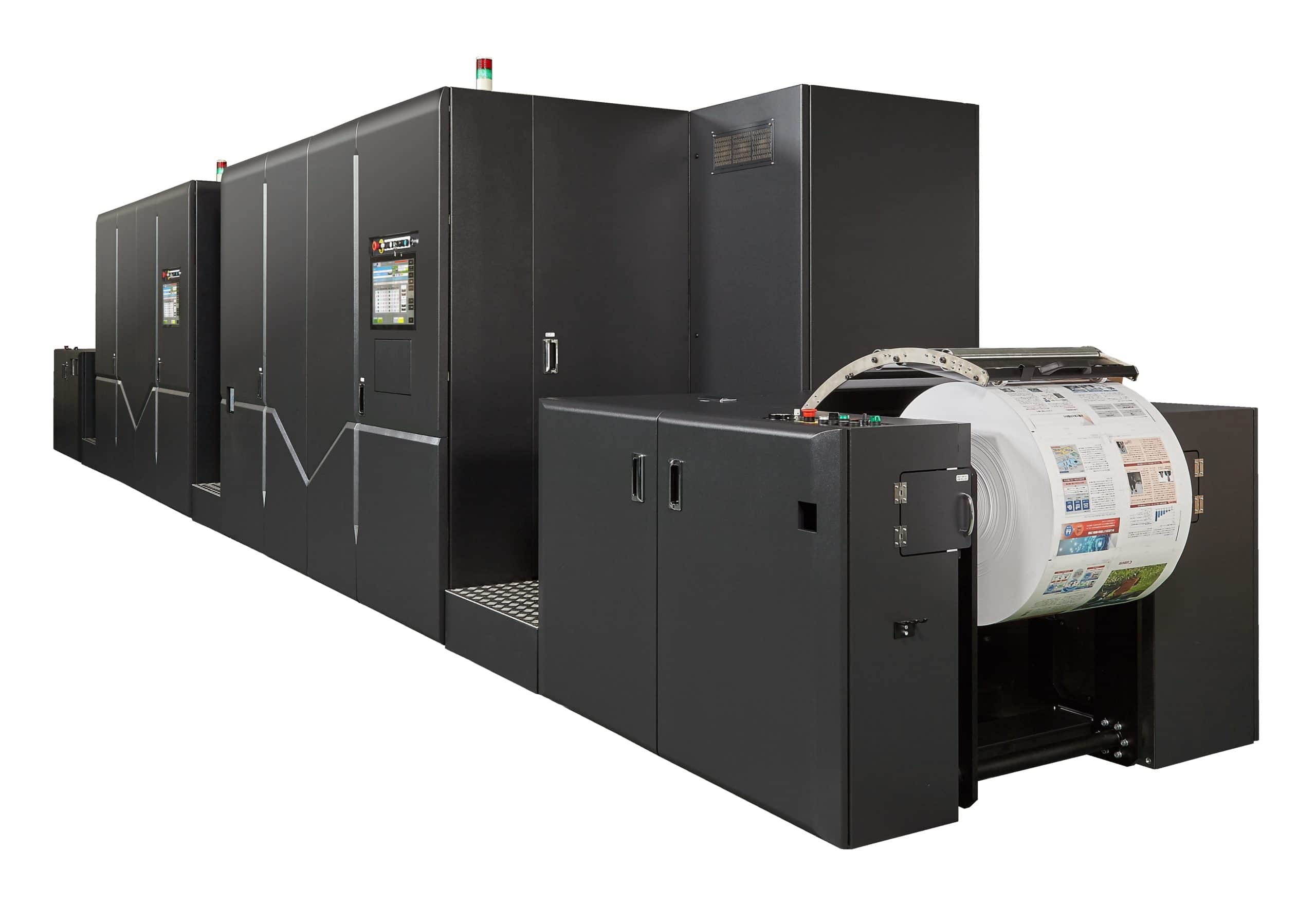

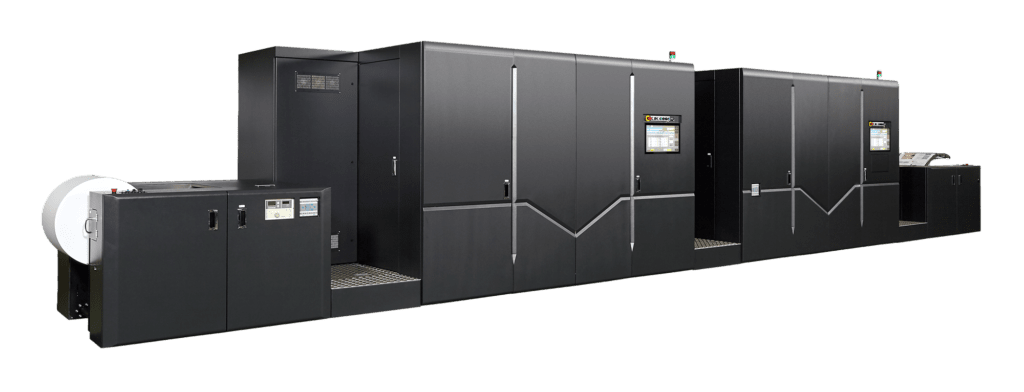

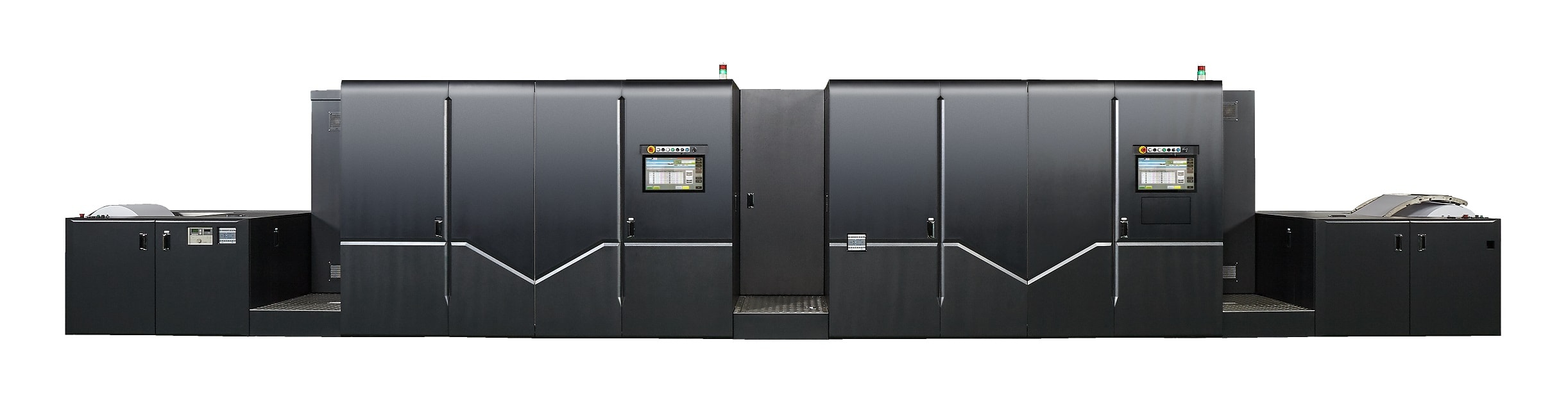

Miyakoshi Full-color A4 Duplex Digital Inkjet Press – Miyakoshi MJP20IXS

High speed color inkjet printing system

Latest technology at the service of the printer

The Miyakoshi MJP20IXS is capable of producing more than 129,000 A4 images per hour.

Thanks to the latest technological advances in this digital press, they make it a perfect solution for printing books, direct marketing, brochures, promotional marketing and many other applications.

Setup time is reduced, productivity is increased, and efficiency is maximized.

Excellent print quality (1200 x 1200 dpi).

High speed at high quality

Many compatible sustrates

Technical data

SPECIFICATIONS INKJET MJP20IXS
Resolution/Printing Speed 1200 x 600 dpi : up to 160 mtr/min

1200 x 720 dpi :up to 125 mtr/min

1200 x 960 dpi : up to 100 mtr/min

1200 x 1200 dpi : up to 80 mtr/min

Printing technology 4 colors CMYK

Drop on demand and one pass

Paper specifications Width : 152,4 to 520,7mm

Weight : 64gsm-300gsm (opc)

Coated, Wood free paper, inkjet wood free paper,recycled paper.

Ink Water base ink
Productivity in Duplex – 2-Up 1200 x 600 dpi : up to 2,154 ipm A4

1200 x 720 dpi :up to 1,682 imp A4

1200 x 960 dpi : up to 1,346 imp A4

1200 x 1200 dpi :up to 1,076 imp A4

* The printing speed is conditioned to the format, weight, substrate conditions, the
generals of printing and optionals equipments.
The printing speed of the quotations and the agreement are mechanical speed.
** This is not a contractual document and technical specifications subjet to change
without notice. All the other trademarks cited are marks registered by their
respective manufacturers.Operator / end user are invite to submit substrates to Miyakoshi for validation.
